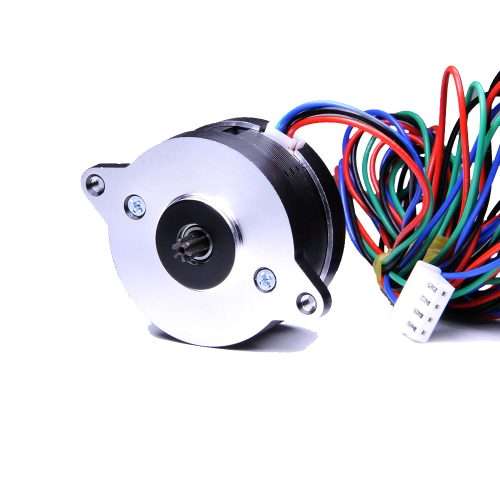

LDO NEMA14 Motor LDO-36STH20-1004AHIG

The LDO NEMA14 Motor LDO-36STH20-1004AHIG is a high-temperature-rated NEMA 14 stepper motor designed for precision, reliability, and high torque. Whether you’re building a 3D printer, CNC machine, or any other motion control system, this compact motor delivers exceptional performance.

Key Specifications:

Step Angle: 1.8 degrees
Shaft Diameter: 2.5mm (with integrated 6 or 7 toothed gear)
Rated Current: 1A
Temperature Rating: Up to 180°C
Weight: 85g
Wiring: Included – 1 Meter of integrated Teflon wire rated up to 200°C (JST XH Terminated)

Features:

High Torque:
– Despite its compact 20mm body length, the LDO-36STH20-1004AHIG offers an impressive holding torque of 100 mNm.
– Ideal for applications where space is limited but torque is crucial.
Integrated Gear:
– The 6 or 7 toothed gear integrated into the shaft simplifies mechanical design.
– Perfect for extruder applications in 3D printers.
Temperature Resilience:
– Rated for use in environments up to 180°C.
– Suitable for heated chambers and demanding industrial setups.
Plug-and-Play Wiring:
– Comes with a 1-meter length of Teflon wire, pre-terminated with a JST XH connector.
– No fuss, no extra connectors needed.
Community Trusted:
– Manufactured by LDO Motors, a name synonymous with quality and reliability in the 3D printing community.

Applications:

3D Printers:
– Use it as an extruder motor for precise filament control.
– Fits seamlessly into NEMA 14-compatible setups.
CNC Machines:
– Ideal for small-scale CNC projects where space-saving is essential.
– Reliable motion control for your CNC router or engraver.
Automation Systems:
– Incorporate the LDO-36STH20-1004AHIG into your custom automation solutions.
– From pick-and-place machines to robotic arms, this motor delivers.

Get Yours Today:

Upgrade your motion system with the LDO-36STH20-1004AHIG stepper motor. Whether you’re a hobbyist, maker, or professional, this motor packs a punch in a compact form factor. Add it to your cart and experience precision in motion!

Please click here for the LDO-36STH20-1004AHIG(6T) stepper motor datasheet

Please click here for the LDO-36STH20-1004AHIG(7T) stepper motor datasheet
