LDO NEMA17 Motor LDO-42STH48-2504AH

**LDO-42STH48-2504AH motors are 24mm D Shaft

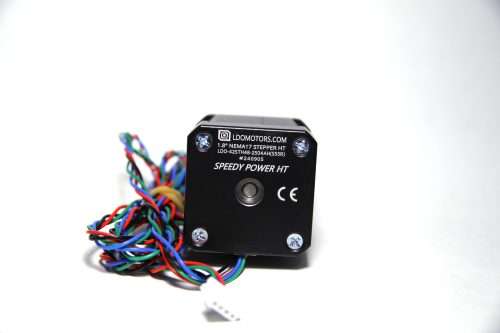

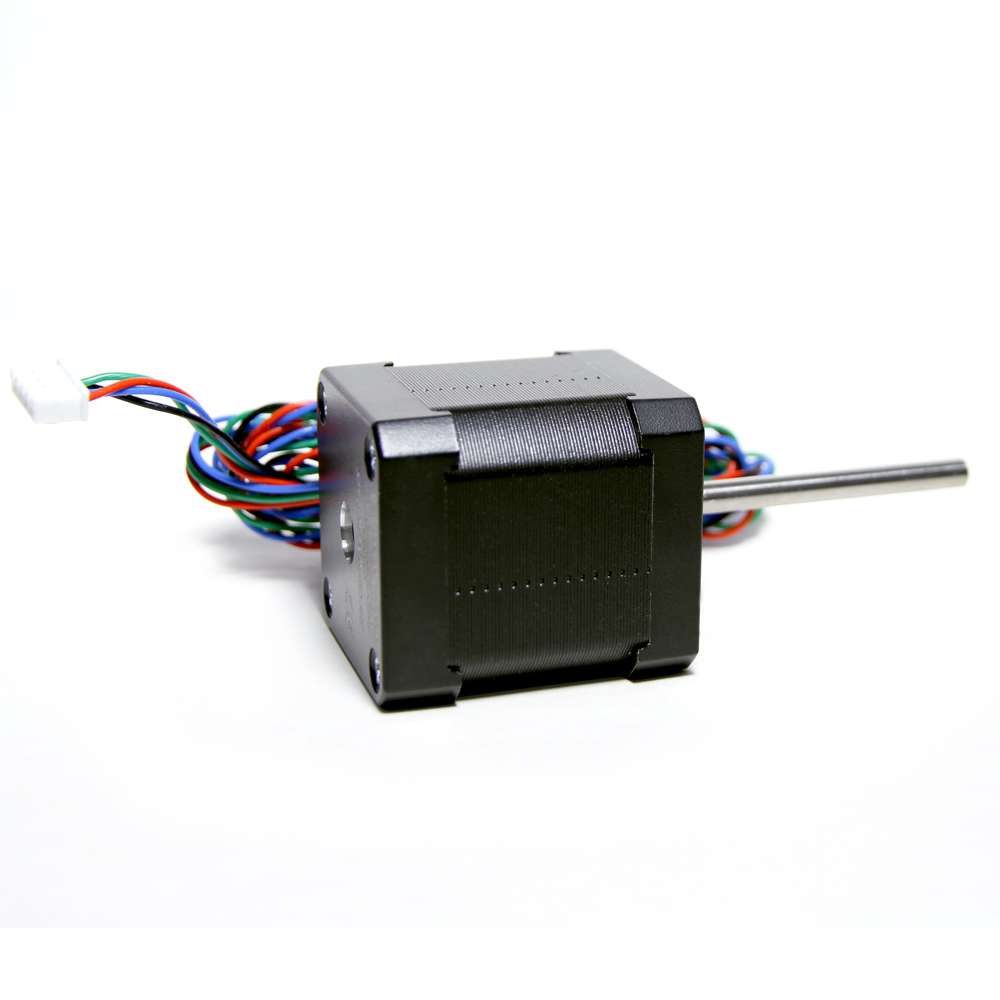

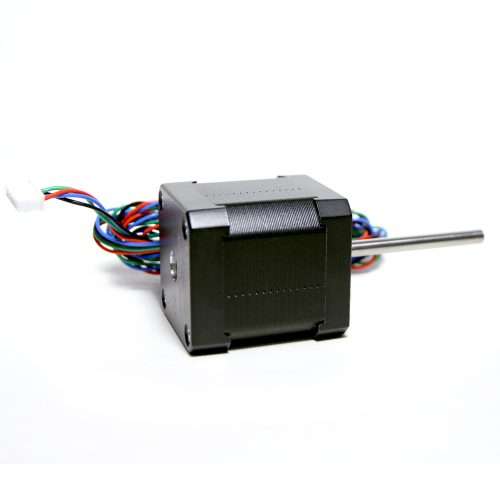

**LDO-42STH48-2504AH(S55R) motors are 55mm Round Shaft

Looking for a motor that loves running at 48v and provides a ton of torque? This high temperature LDO NEMA17 Motor LDO-42STH48-2504AH is your go to choice for your next project.

55mm Round Shaft length is an excellent choice if you want to build an AWD system like the Monolith Gantry by CloakedWayne or want the extra length to reinforce the motor shaft with bearings on other printers.

• Motor: LDO-42STH48-2504AH

• Rated Temp: 180C

• 5mm Diameter Shaft: 24mm D shaft or 55mm Round Shaft

• Step Angle: 1.8 degrees for precise control

• Rated Current: 2.5A, offering robust power

• Holding Torque: 55Ncm, ensuring strong holding force

• Applications: Ideal for 3D printers, CNC machines, and robotics

Why Choose LDO-42STH48-2504AH?

This stepper motor is engineered to deliver exceptional accuracy and reliability, making it perfect for both DIY enthusiasts and professional engineers. Whether you’re working on a 3D printer or a CNC machine, the LDO-42STH48-2504AH ensures seamless integration and performance.

Order Yours Today

Elevate your projects with the unmatched quality and precision of the LDO-42STH48-2504AH stepper motor. Don’t settle for less when it comes to performance and reliability. Get yours now and see the difference it makes!

For more information regarding this motor please refer to the datasheet
LDO-42STH48-2504AH – 24mm D Shaft –  datasheet
LDO-42STH48-2504AH(S55R) – 55mm Round Shaft – datasheet
