Monolith Gantry R1 Kit
PLEASE READ FULLY and click here to see Monolith Gantry Github page to fully understand this challenging project!!!
** Kit does not include any CNC, sheet metal, printed parts, or Belts

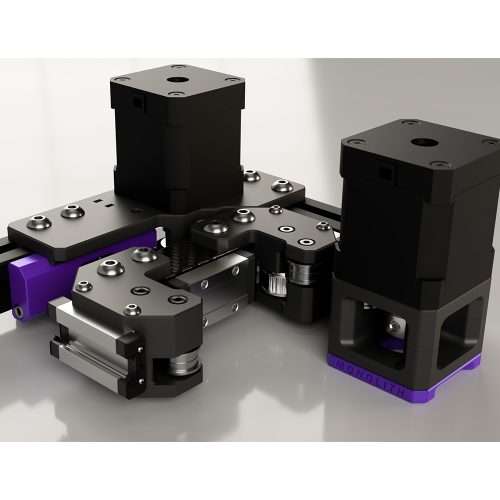

The Monolith Gantry is a high performance gantry platform designed by CloakedWayne for either the Voron Trident or Voron 2.4. Our kits include hardware parts for both 2WD / 4WD configurations. Please see below a list of included parts in these kits.
Monolith Gantry R1 Features
– Updated styling
– Much better tensioner travel
– No toothed idlers required
– The shortest and the simplest belt path
– Double shear support
– Can fit into a stock 2020 frame at the cost of some Y-overtravel with the added no-protrusion mode
– Clean and uncluttered design
Performance Expectations
2WD
Due to the 10-15cm shorter belt path, with stiffer and lighter XY-joints the printer should perform similarly to a 50mm smaller one equipped with the same X-axis setup.
AWD
It doesn’t come at the cost of adding 20cm belt length and idlers, so input shaper scaling can be close to +100% compared to 2WD due to the truly halved effective belt length. But only when no toolhead or frame bottlenecks are limiting its scaling.
9mm belts: Wider belts can offer an additional 50% input shaper scaling on top of what’s described above.
Design Considerations
- You have to build a well-balanced system: the increased effective belt stiffness with higher-end gantry configurations will amplify toolhead and frame rigidity issues
- Some toolheads are not yet compatible because of the different belt path
- Z-chain relocation or Z-umbilical is needed on V2
- Trident rear vertical extrusion brackets have to be rotated by 180 degrees or swapped to regular 2020 brackets based on the gantry configuration
We carry Genuine Gates belts and can be purchased here:
Gates Power Grip 2GT RF Open Belt
Gates Power Grip 2GT EPDM Open Belt
Gates Power Grip GT3 Open Belt
Gates Power Grip 2GT EPDM Closed Loop Belt – Recomended Choice
**Monolith Gantry Kits Based on Google Sheets Configurator V1.0.10 for printed gantry build
Monolith Gantry 6mm Belt Kit Includes
Qty 6 – M2 x 10 Self Tapping Screw
Qty 4 – M3x10 SHCS
Qty 4 – M3x12 SHCS
Qty 4 – M3x16 SHCS
Qty 4 – M3x25 SHCS
Qty 16 – M3x35 SHCS
Qty 4 – M3x45 SHCS
Qty 10 – M5x40 SHCS
Qty 14 – M3x6 BHCS
Qty 32 – M5x10 BHCS
Qty 10 – M5x16 BHCS
Qty 24 – M3x30 BHCS
Qty 24 – M3 Shim Washer 0.5mm 7mm OD
Qty 14 – M5 Shim Washer 0.5mm x 8mm OD
Qty 14 – M5 Shim Washer 1mm x 8mm OD
Qty 12 – Heatset insert M3 5×4
Qty 4 – M3 Hex Nut
Qty 10 – M3 Roll in T Nut
Qty 40 – M5 Roll in T Nut
Qty 4 – Premium Pulley 20T 6mm
Qty 4 – Premium Live Shaft Idler 20T 6mm
Qty 26 – F695-2RS Bearing
Qty 2 – D5x20 smooth pin
Qty 10 – D5x30 smooth pin
Monolith Gantry 9mm Belt Kit Includes
Qty 4 – M2 x 10 Self Tapping Screw
Qty 4 – M3x10 SHCS
Qty 4 – M3x12 SHCS
Qty 4 – M3x16 SHCS
Qty 4 – M3x35 SHCS
Qty 18 – M3x45 SHCS
Qty 10 – M5x40 SHCS
Qty 14 – M3x6 BHCS
Qty 18 – M3x30 BHCS
Qty 8 – M3x40 BHCS
Qty 8 – M5x12 BHCS
Qty 34 – M5x16 BHCS
Qty 10 – M5x20 BHCS
Qty 24 – M3 Shim Washer 0.5mm 7mm OD
Qty 34 – M5 Shim Washer 0.5mm x 8mm OD
Qty 34 – M5 Shim Washer 1mm x 8mm OD
Qty 12 – Heatset insert M3 5×4
Qty 4 – M3 Hex Nut
Qty 10 – M3 Roll in T Nut
Qty 40 – M5 Roll in T Nut
Qty 4 – Premium Pulley 20T 9mm
Qty 4 – Premium Live Shaft Idler 20T 9mm
Qty 26 – F695-2RS Bearing
Qty 6 – 695-2RS Bearing
Qty 2 – D5x25 smooth pin
Qty 10 – D5x40 smooth pin
