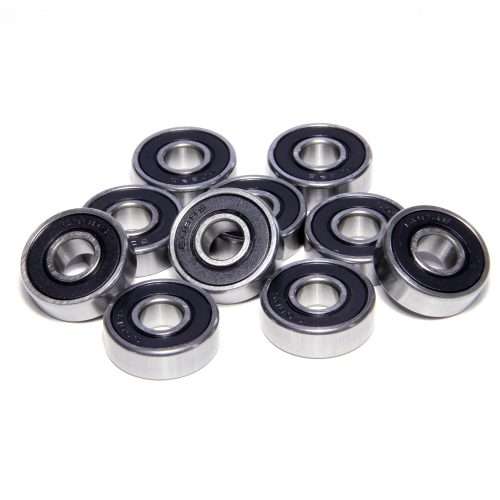

608-2RS Bearing ABEC-7 pack of 10

The 608-2RS bearing ABEC-7 come with a rubber seal on both sides to prevent dust or debris from entering and come prepacked with grease for continuous smooth operation.

The ABEC scale is an industry accepted standard for the tolerances of a ball bearing. It was developed by the Annular Bearing Engineering Committee (ABEC) of the American Bearing Manufacturers Association (ABMA). The ABEC scale is designed to provide bearing manufacturers dimensional specifications that meet the standards of precision bearings in a specified class. Manufacturers who produce equipment that require bearings must also know the dimensional tolerances to design parts that will accommodate a bearing.

There are five classes from largest to smallest tolerances: 1, 3, 5, 7, 9. The higher ABEC classes provide better precision, efficiency, and the possibility of greater speed capabilities.

Tech Specs
Model: 608-2RS
ABEC Rating: ABEC-7
Bearing Type: Ball Bearing
Bearing Grade: GCr15 Bearing Steel
Ball Grade: GCr15 Bearing Steel
Seal Type: Rubber Seal Cover
Hardness: 58HRC
Dynamic Load Rating (Cr) (Newtons): 1470
Static Load Rating (Cor) (Newtons): 540
Inner diameter: 8mm
Outer diameter: 22mm
Width: 7mm

Weight.01 kg
Dimensions8 × 8 × 1 cm
