Voron 2 Motor Bundle Power 24v

**Be sure to check out our Super Bundle offer at the bottom of this page to save an additional $35**

**QHV5160 Stepper drivers or BTT TMC5160T Plus drivers are highly recommended for X and Y Motors

The Voron 2 Motor Bundle-Power 24v is engineered for high-performance 3D printing, optimized to harness 24V for superior power, speed, and efficiency. Designed specifically for Voron 2.4 3d printer builds, this motor set ensures precise motion control and consistent reliability, making it a perfect choice for demanding print jobs.

Featuring premium stepper motors, this bundle delivers enhanced thermal management and reduced power draw, maximizing performance while minimizing wear. The 24V compatibility allows for higher acceleration rates, ensuring smooth, accurate movement even during complex, high-speed prints.

Upgrade your Voron 2.4 with this power-packed motor bundle and experience exceptional stability, precision, and durability in every print.

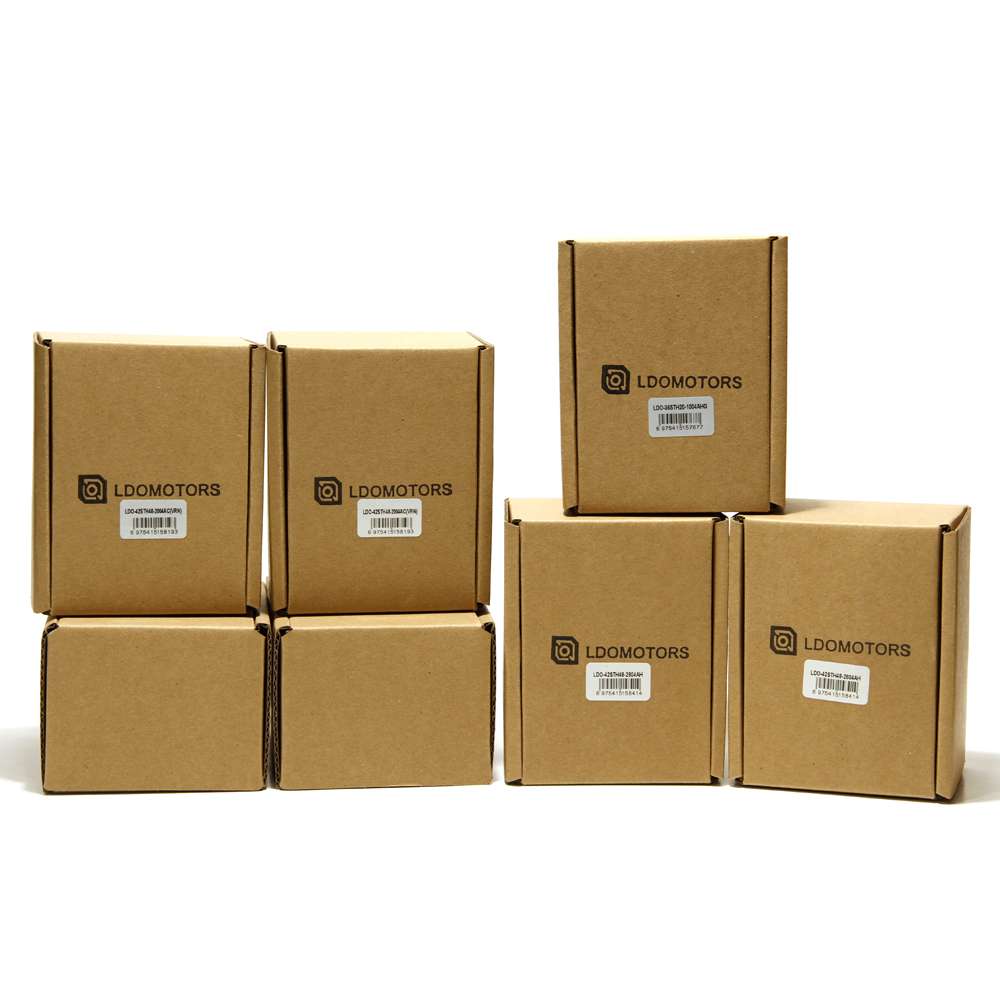

Kit Includes

Qty 1 – LDO-36STH20-1004AHG(VRN)

• Datasheet
• NEMA 14
• 10 Tooth Gear
• Rated Temp: 180C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 1 Amp
• 100 mNm Holding Torque
• 20mm Body
• 500mm wire lead with XH Connector

QTY 2 – LDO-42STH40-2804AH
LDO-42STH48-2804AH – 24mm D shaft –  datasheet
LDO-42STH48-2804AH (S55R) – 55mm Round shaft – datasheet

• NEMA 17
• Rated Temp: 180C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 2.8 Amp
• 4.2Kgf cm holding torque
• 48mm Body
• 24mm or 55mm Round Shaft (5mm diameter)

Qty 4 – LDO-42STH48-2004AC(VRN)

• Datasheet
• NEMA 17
• Rated Temp: 100C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 2 Amp
• 5.9Kgf cm Holding Torque
• 48mm Body
• 24mm Output Shaft (5mm diameter)

Super Bundle Coupon!

Combine this Voron 2 Motor bundle with one of our Voron 2 Starter bundles to save an additional $35 off both items by using “v2superbundle” coupon (without quotes) in the cart before checkout.

Voron 2 Starter Bundle – 300mm
Voron 2 Starter Bundle – 350mm
