3D Lab Tech MGN12H Linear Rail – Z1 Preload

Upgrade your 3D printer or CNC machine with our professional grade 3D Lab Tech MGN12H linear rails, engineered for precision motion control and built to last. We precheck all our linear rails before they are shipped to ensure every linear rail is smooth and does not bind.

Superior Material Construction
Crafted from premium stainless steel 440C, these linear rails deliver exceptional performance in demanding manufacturing environments. The 440C stainless steel composition provides outstanding rust and corrosion resistance, making these rails ideal for workshops with varying humidity levels or where cutting fluids and coolants are present. Unlike standard carbon steel rails that can corrode over time, our MGN12H rails maintain their smooth operation and precision even in challenging conditions.

Exceptional Hardness & Durability
With a hardness rating of 58-60 HRC after heat treatment, these rails offer remarkable wear resistance and longevity. This exceptional hardness ensures the rail surfaces maintain their geometry under continuous use, providing consistent accuracy throughout thousands of hours of operation. The hardened raceways minimize deflection and wear, even under heavy loads and high-speed movements.

Easy Maintenance with Integrated Oil Ports

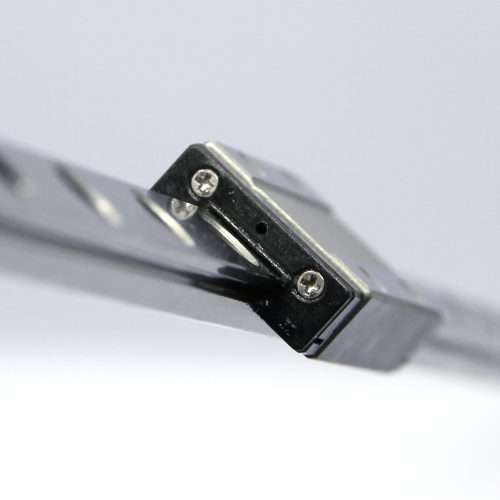

Each carriage block features convenient oil ports for straightforward lubrication maintenance. These ports allow you to easily inject lubricant directly into the carriage, ensuring the ball bearings and raceways stay properly lubricated for smooth operation and extended service life. Regular lubrication through these ports helps maintain optimal performance and prevents premature wear, keeping your machine running at peak precision. Please note that these ports are not designed to take grease. Grease ports are usually not found on small carriages like these. If you plan to use grease, please apply it directly to the ball bearings from under the carriage.

Precision Engineering for Accurate Motion
The MGN12H profile is specifically designed for applications requiring smooth, precise linear motion. Perfect for 3D printer axes and CNC machine tools, these rails deliver the accuracy and repeatability your projects demand. The compact 12mm width makes them ideal for space-conscious builds without compromising on performance.

Z1 Medium Preload for Enhanced Precision
These rails feature a Z1 medium preload classification, striking the optimal balance between smooth motion and rigidity. The medium preload virtually eliminates play in the carriage, ensuring tighter tolerances and improved positioning accuracy. This makes them particularly well-suited for precision applications where dimensional accuracy is critical, while still maintaining smooth travel characteristics. The Z1 preload provides superior performance compared to Z0 (normal preload) options, reducing backlash and improving overall machine precision.

Z0 vs Z1 Preload – Performance Comparison
Understanding preload helps you select the right rail for each axis:

Rigidity & Accuracy: Z1 (med preload) is superior. The higher preload significantly reduces deflection under load, delivering better positioning accuracy and repeatability.
Friction & Smoothness: Z0 (low preload) is better. Z1’s medium preload increases friction, which can lead to higher drag, heat generation, and potential binding if rails are not perfectly parallel during installation.
Application Recommendations:
- Z1: Ideal for single rail X axis applications where maximum accuracy and rigidity are priorities.
- Z0: Better suited for Y and Z axes where multiple rails are used together, allowing for smoother, less binding movement.

Applications

3D printer X axes but can be used on Y and Z axes as well
CNC routers and mills
Laser engravers
Automated positioning systems
Any precision linear motion application

Invest in rails that won’t let you down. Our MGN12H linear rails combine corrosion resistance, extreme hardness, and Z1 medium preload precision to keep your machines running smoothly and accurately for years to come.

**Carriages and rails are not interchangeable. Each carriage is specifically matched to the rail it is shipped with.

Includes:
1 x 440C Stainless Steel Rail 12mm wide
1 x Z1 Medium Preload H Carriage with oil ports
