Bondtech LGX Lite Pro Extruder

$124.39 + Tax (USD)

Free Shipping in Canada for orders over $100 before tax.

Availability: In stock

SKU: EXT01LGX41012 Category: Tags: , , ,

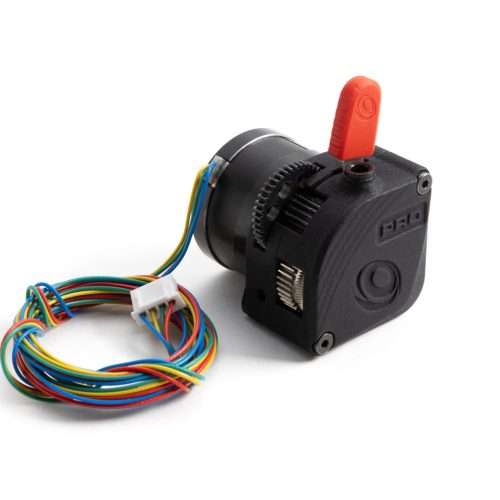

Bondtech LGX Lite Pro Extruder

The Bondtech LGX Lite Pro Extruder is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s Dual Drive Technology is based on larger drive gears.

  • High torque
  • More Pre-tension presets
  • V2 style housing build
  • increased resistance to heat
  • micro form factor, featherweight, and small footprint
  • large drive wheels for enhanced filament grip

Includes full size LGX Steel Drive Train, maintenance windows and filament tension lever with 5 presets (open, rigid, hard rigid/semi flexible, flexible, soft flexible ).

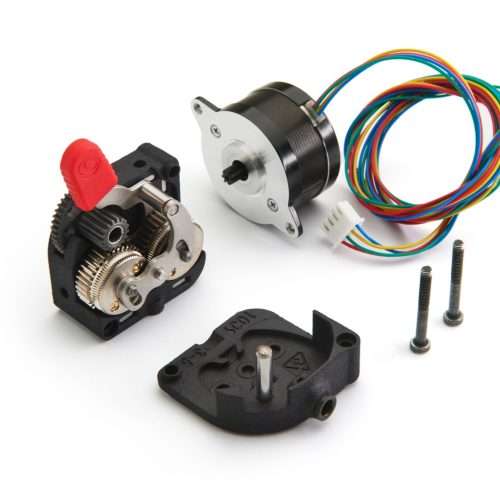

Each LGX Lite PRO extruder is supplied with:

  • 1x LGX Lite PRO feeder
  • 1x Nema14 Round 22mm pancake stepper motor (mounted on extruder)
  • 1m long lead cable with JST-XH 4-pin connector
  • 1x 2mm Hex Key (recommended tool)
  • 1x Powered By Bondtech sticker

Also shipping with additional accessories:

  • 1x Push-fit collar (inserted)
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter
  • 8x M3 square nuts for reinforcing mounting holes (inserted)

More information on the Bondtech LGX Lite Pro Extruder can be found here

Weight0.2826 kg
Dimensions10 × 7.5 × 8 cm
