Daylight on a Stick

Name: Daylight on a Stick | 3D Lab Tech
Price: 10.95 CAD
Availability: InStock

Brought to you by Blamm

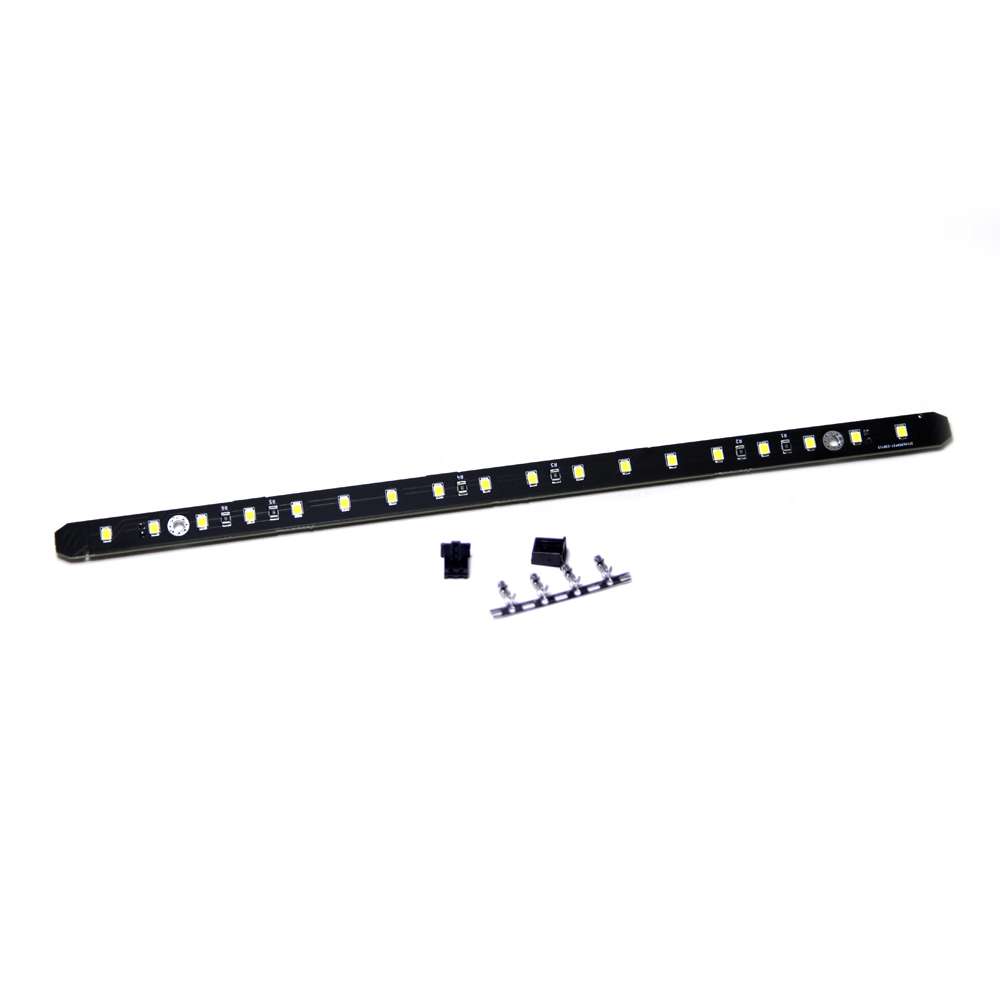

Illuminate your 3D printing workspace with Daylight on a Stick—an essential accessory for every 3D printing enthusiast. This innovative lighting solution features 18 high-performance white LEDs (SMD2835) that effortlessly brighten even the darkest 3D printers, making intricate details and subtle nuances in your prints more visible and enhancing the overall precision of your work.

Designed specifically for 250mm to 350mm 3D printers, these LED sticks offer versatile installation options to suit various setups. Need a longer length? No problem! They can be daisy-chained together, providing the flexibility to extend the lighting coverage to meet your specific needs.

Key features include a Luminous Flux of 60, ensuring a bright and clear workspace. With a Color Rendering Index (CRI) of 80, the LEDs produce a natural white light at 4000K, offering optimal visibility without causing strain on your eyes.

Whether you’re a hobbyist or a professional, Daylight on a Stick is designed to elevate your 3D printing experience. Its sleek design and superior functionality make it a must-have tool for achieving the best possible results in your printing projects. Light up your creativity and bring your prints to life with this indispensable lighting solution.

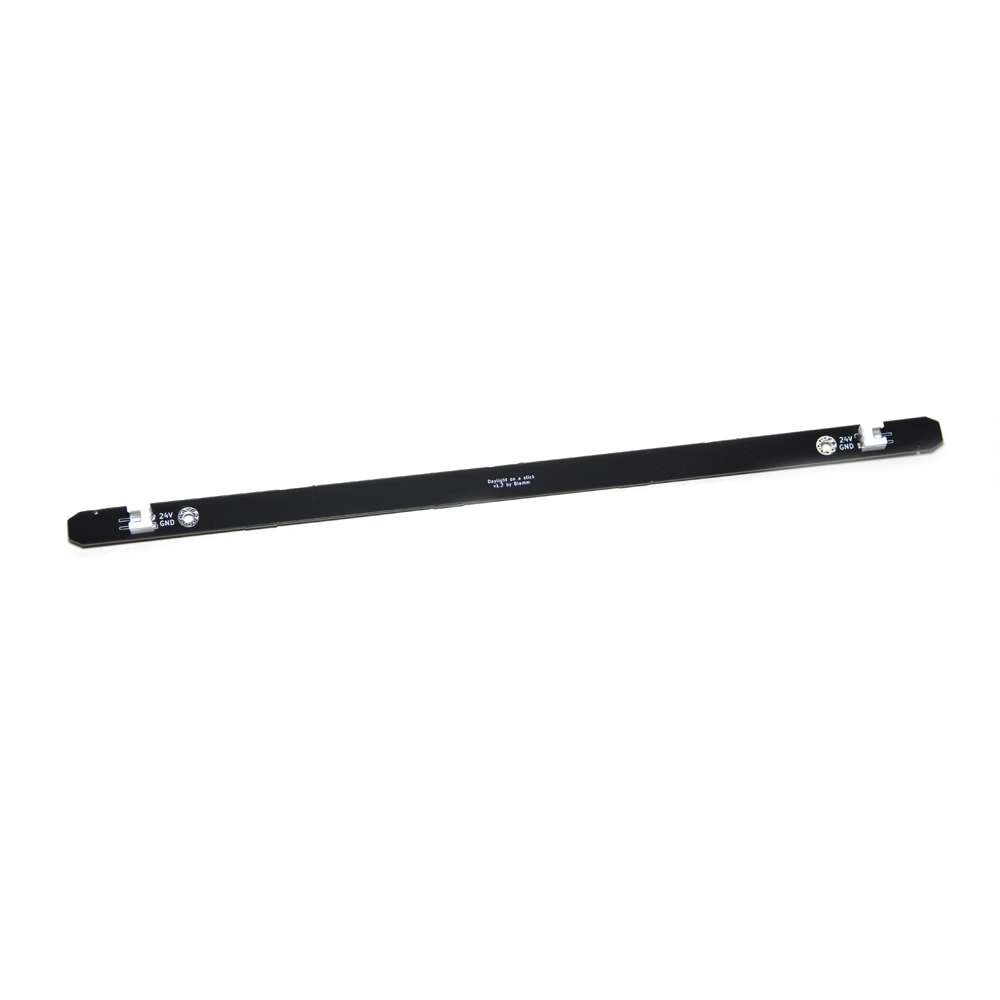

Use the regular Daylight on a Stick on 24V or hook them up to a spare heater output on your control board.
When connected to the heater output on the control board you can control the lights using below code in Klipper:

[output_pin daylight]
pin: ##PIN on control board##
pwm: True
cycle_time: 0.01

More information on Daylight on a Stick can be found here

STL files for mounting the Daylight on a stick can be found here

Includes

Qty 1 – Daylight on a Stick v1.2 (27cm long)
Qty 2 – JST XH 2 position connectors
Qty 4 – JST XH terminals
