LDO Voron AWD CNC Kit for V2 and Trident

** 4 x Motors with longer shafts are required for this build and are not included in this Kit **

Upgrade your Voron V2.4 or Trident to All Wheel Drive (AWD) configuration with the LDO Voron AWD CNC Kit for V2 and Trident. This precision engineered CNC aluminum kit is based on the acclaimed aTinyShellScript design. This modification adds two additional NEMA17 stepper motors to the front gantry (motors not included in kit), dramatically improving acceleration, maximum speed, and torque capabilities while reducing belt path lengths for enhanced precision.

** 24v builds we recommend the LDO-42STH48-2804AH(S55R)  available here **
** 48v builds we recommend the LDO-42STH48-2504AH(S55R) available here **

Key Features

• All Wheel Drive Motor Configuration: Adds 2x additional NEMA17 motors to complement existing rear motors
• Enhanced Performance: Substantially improved acceleration, max speed, and torque output
• Professional CNC Manufacturing: Precision cut 3mm thick aluminum construction
• Premium Finish: Black anodized aluminum parts for durability and aesthetics
• Lightweight Design: Optimized for minimal weight addition while maximizing rigidity
• Proven Design: Based on the extensively tested aTinyShellScript open-source modification

Technical Specifications

• Material: 3mm thick aluminum alloy, CNC machined
• Finish: Black anodized coating
• Motor Compatibility: NEMA17 steppers (front gantry) + existing NEMA17 (rear)
• Total Motors: 4-motor AWD configuration
• Weight: Lightweight design maintains printer balance

Benefits of AWD Upgrade

• Reduced Belt Path: Shorter belt runs reduce stretching and improve accuracy
• Higher Acceleration: Distributed motor load enables faster direction changes
• Increased Top Speed: More torque available for high-speed printing
• Better Resonance Control: Improved gantry rigidity reduces vibrations
• Enhanced Reliability: Load distribution reduces wear on individual components

Performance Gains

• 20-40% increase in maximum acceleration
• 15-25% improvement in top printing speeds
• Reduced ghosting and ringing artifacts
• Improved dimensional accuracy on fast prints
• Enhanced overall print quality at speed

Important Notes

• Requires Klipper configuration for 4-motor setup
• Additional stepper drivers needed (not included)
• Additional Motor wiring and electrical connections required
• May require slight modifications to existing wiring harness

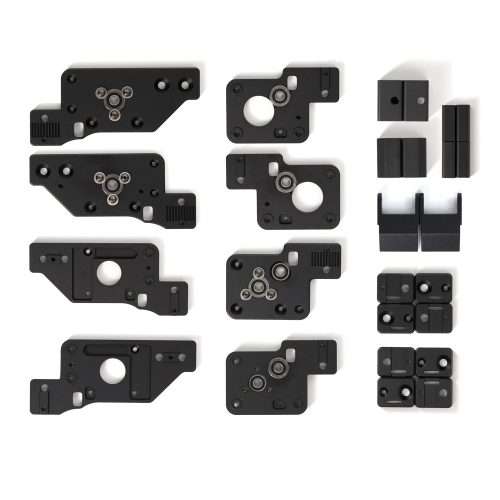

Kit Includes

• 2x Tensioner Plates – Precision belt tensioning components
• 4x Front Plates – Motor mounting plates for front gantry
• 4x Rear Plates – Modified rear mounting components
• 4x Simpler Idlers – Optimized idler assemblies
• Hardware Kit – All necessary fasteners and components
• Professional Packaging – Custom foam-insert case for protection

More information on the Github page regarding the LDO AWD CNC Kits including assembly manuals for bot h Trident and V 2.4 can be found here
