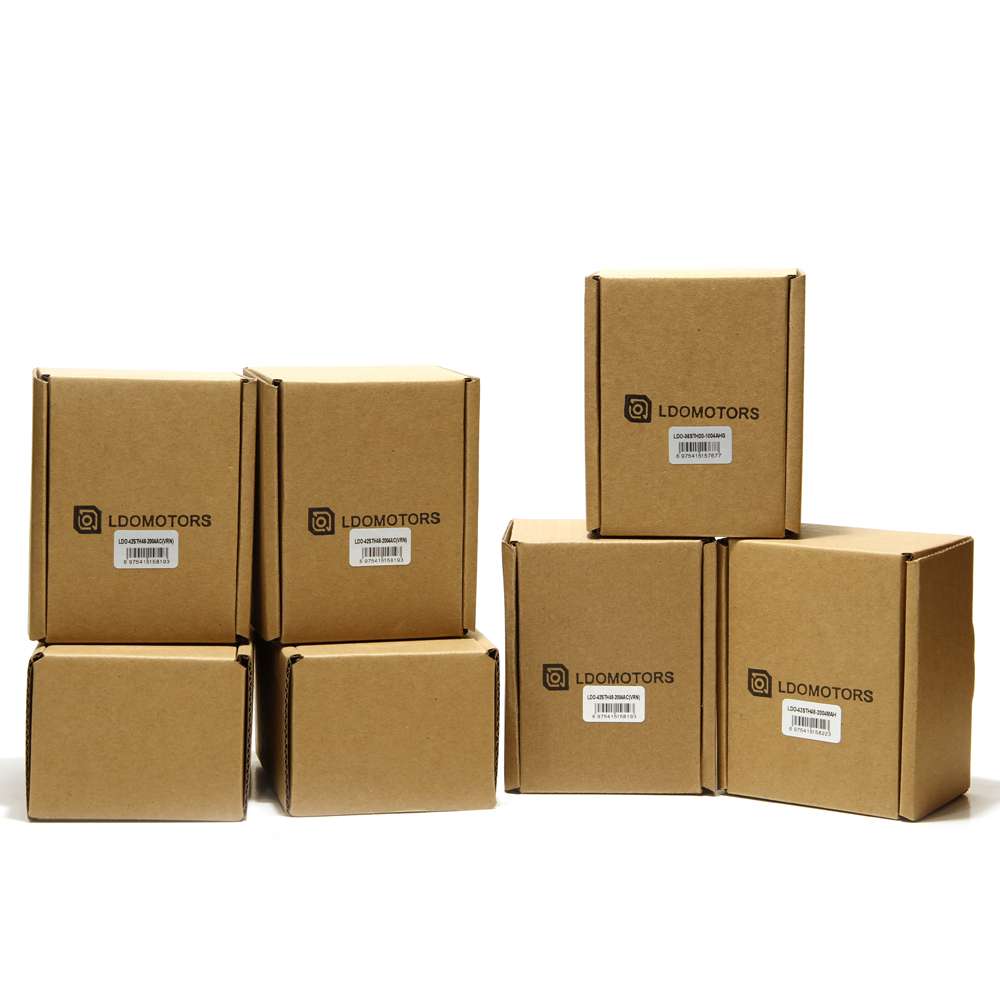

Voron 2 Motor Bundle Standard 24v

**Be sure to check out our Super Bundle offer at the bottom of this page to save an additional $35**

The Voron 2 Motor Bundle-Standard 24v is a high-quality set of stepper motors designed specifically for Voron 2.4 3D printers. This kit provides reliable performance, smooth motion control, and optimal torque for precise printing. Engineered with durability and efficiency in mind, the motors are carefully selected and designed by LDO to meet Voron’s demanding specifications.

Each motor features robust construction, ensuring long-lasting operation while minimizing vibration and heat buildup. Whether you’re upgrading your Voron 2.4 or assembling a new build, this motor kit delivers consistency and reliability, helping you achieve high-quality prints with ease.

Kit Includes

Qty 1 – LDO-36STH20-1004AHG(VRN)

• Datasheet
• NEMA 14
• 10 Tooth Gear
• Rated Temp: 180C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 1 Amp
• 100 mNm Holding Torque
• 20mm Body
• 500mm wire lead with XH Connector

QTY 2 – LDO-42STH40-2004MAH(VRN)

• Datasheet
• NEMA 17
• Rated Temp: 180C
• .9° Step Angle.
• 400 Steps Per Revolution
• 2.0 Amp
• 3.5Kgf cm Holding Torque
• 40mm Body.
• 22mm Output Shaft (5mm diameter)
• Includes 50mm lead with Molex Microfit 3 termination

Qty 4 – LDO-42STH48-2004AC(VRN)

• Datasheet
• NEMA 17
• Rated Temp: 100C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 2 Amp
• 5.9Kgf cm Holding Torque
• 48mm Body
• 24mm Output Shaft (5mm diameter)

Super Bundle Coupon!

Combine this Voron 2 Motor bundle with one of our Voron 2 Starter bundles to save an additional $35 off both items by using “v2superbundle” coupon (without quotes) in the cart before checkout.
