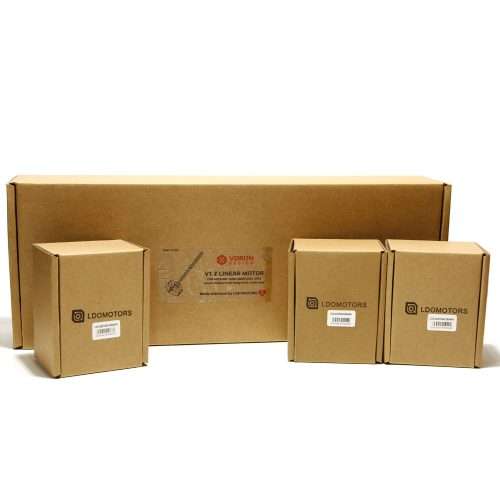

Voron Trident Motor Bundle Torque 48v

**Be sure to check out our Super Bundle offer at the bottom of this page to save an additional $32**

**QHV5160 Stepper drivers or BTT TMC5160T Plus drivers are highly recommended for X and Y Motors

The Voron Trident Motor Bundle-Torque 48v is built for maximum torque and efficiency, delivering exceptional torque and precision for your Voron Trident printer. Designed to handle heavy loads and rapid movements, these high-voltage stepper motors provide greater force transmission, ensuring smoother operation and reduced skipping during demanding print jobs.
With 48V optimization, this motor set enables faster acceleration, improved thermal performance, and increased energy efficiency, making it ideal for high-speed, high-detail prints. Whether you’re pushing the limits of speed or handling complex designs, this bundle ensures stable, reliable motion with minimal heat buildup.
Upgrade your Voron Trident with this powerful, high-torque 48V motor bundle, and take your printing precision to the next level.

Kit Includes

Qty 1 – LDO-36STH20-1004AHG(VRN)

• Datasheet
• NEMA 14
• 10 Tooth Gear
• Rated Temp: 180C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 1 Amp
• 100 mNm Holding Torque
• 20mm Body
• 500mm wire lead with XH Connector

QTY 2 – LDO-42STH40-2504AH
LDO-42STH48-2504AH – 24mm D Shaft –  datasheet
LDO-42STH48-2504AH(S55R) – 55mm Round Shaft – datasheet

• NEMA 17
• Rated Temp: 180C
• 1.8° Step Angle
• 200 Steps Per Revolution
• 2.8 Amp
• 55Ncm holding torque
• 48mm Body
• 24mm or 55mm Round Shaft (5mm diameter)

QTY 3 – LDO-42STH40-1684L300E

• Datasheet
• NEMA 17
• Rated Temp: 100C
• 1.8° Step Angle.
• 200 Steps Per Revolution.
• 1.68A Phase.
• 450mN-m Holding Torque.
• 40mm Body.
• 300mm Output Shaft with Tr8x4 nut

Super Bundle Coupon!

Combine this Trident Motor bundle with one of our Voron Trident Starter bundles to save an additional $32 off both items by using “trisuperbundle” coupon (without quotes) in the cart before checkout.

Voron Trident Starter Bundle – 300mm
Voron Trident Starter Bundle – 350mm
