Voron 0 Live Tulip Gantry Kit

Name: Voron 0 Live Tulip Gantry Kit | 3D Lab Tech
Price: 89.95 CAD
Availability: InStock

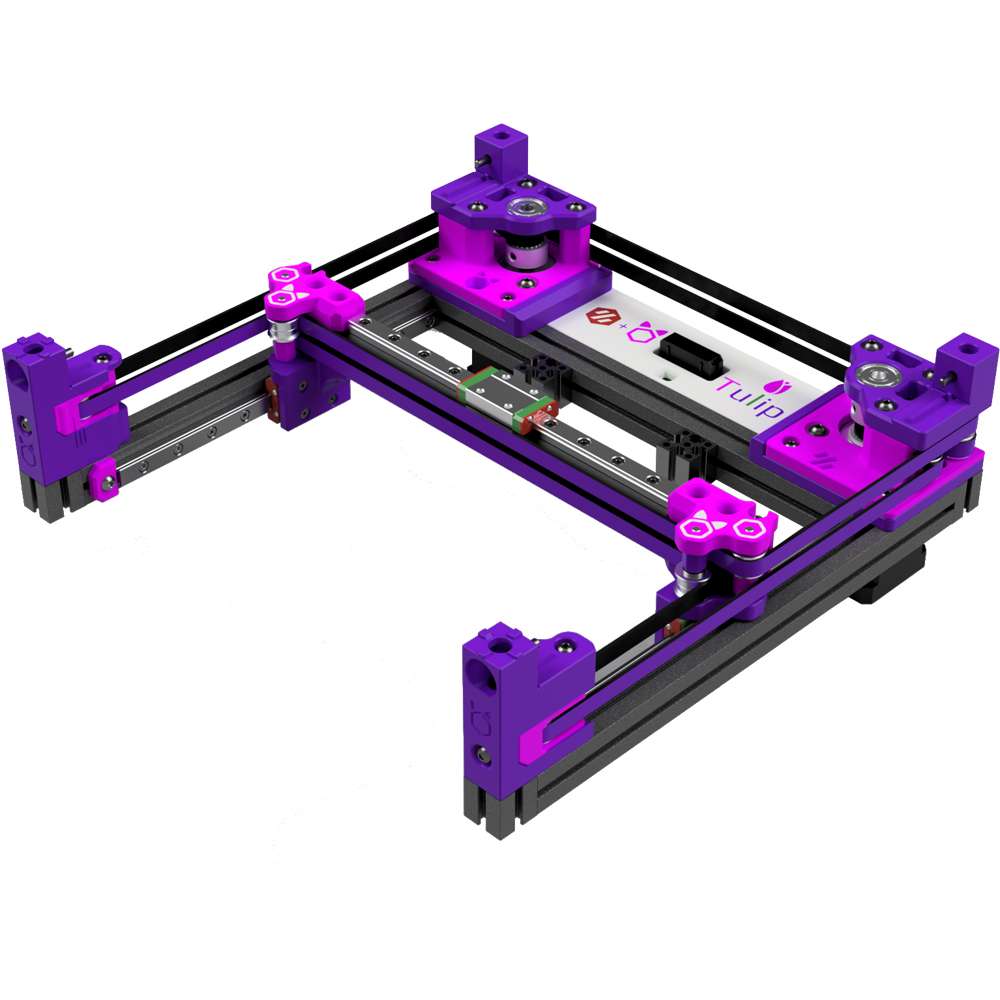

The Voron 0 Live Tulip Gantry kit is a full pin mod for the Voron 0.2 that completely rethinks how the AB motor mounts, XY gantry joints, and front idlers are assembled. Instead of bearing stacks running on screws and fiddly tensioning nuts, every bearing stack runs on proper 3mm steel pins held in double shear and the result is a stiffer, more precise gantry that’s also significantly easier to tension and maintain.

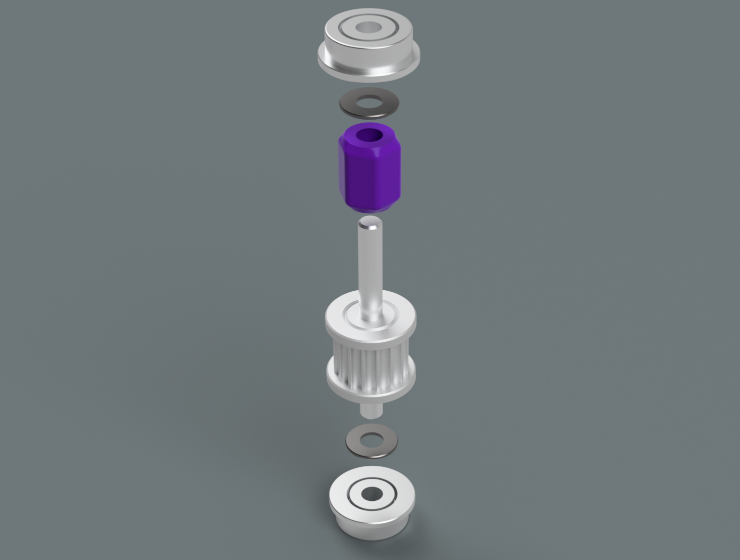

This kit is built around the Live Idler variant, which replaces the standard XY joints with a live shaft idler design using 16T solid idlers. This allows the XY joints themselves to handle tensioning duties, integrating the idler and tensioner into a single clean assembly.

Key features of the Tulip mod:

AB motors are mounted solidly to the frame, meaning no more shunting them back and forth with a bulky tensioning nut
AB motor shafts are held in double shear with an extra bearing, lowering radial force on the motor bearings

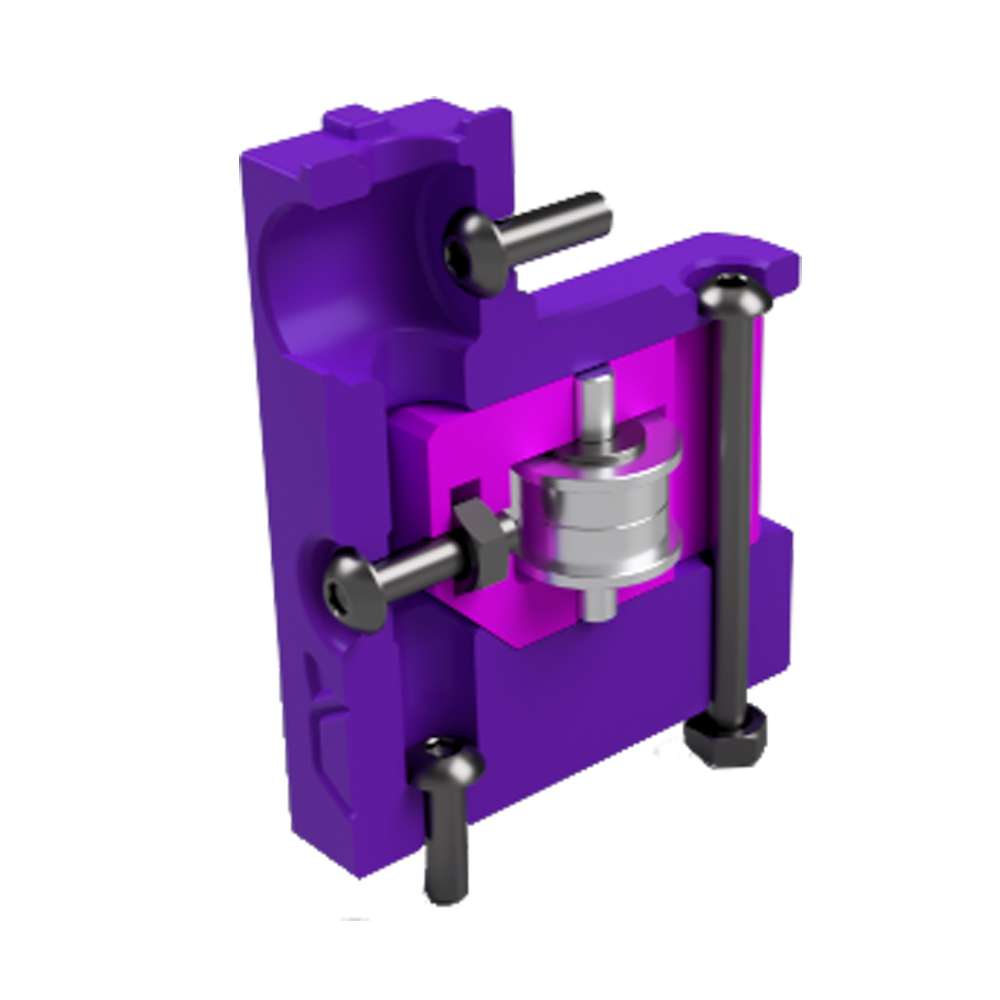

Tension is now applied through an M3 screw in the front idlers, and ALL bearing stacks run on pins rather than screws
Both MGN7H (stock) and MGN9C X rails are supported, WITH NO TRAVEL LOSS
Standard 3mm off-the-shelf pins, for those unable to cut their own
LazyCam support

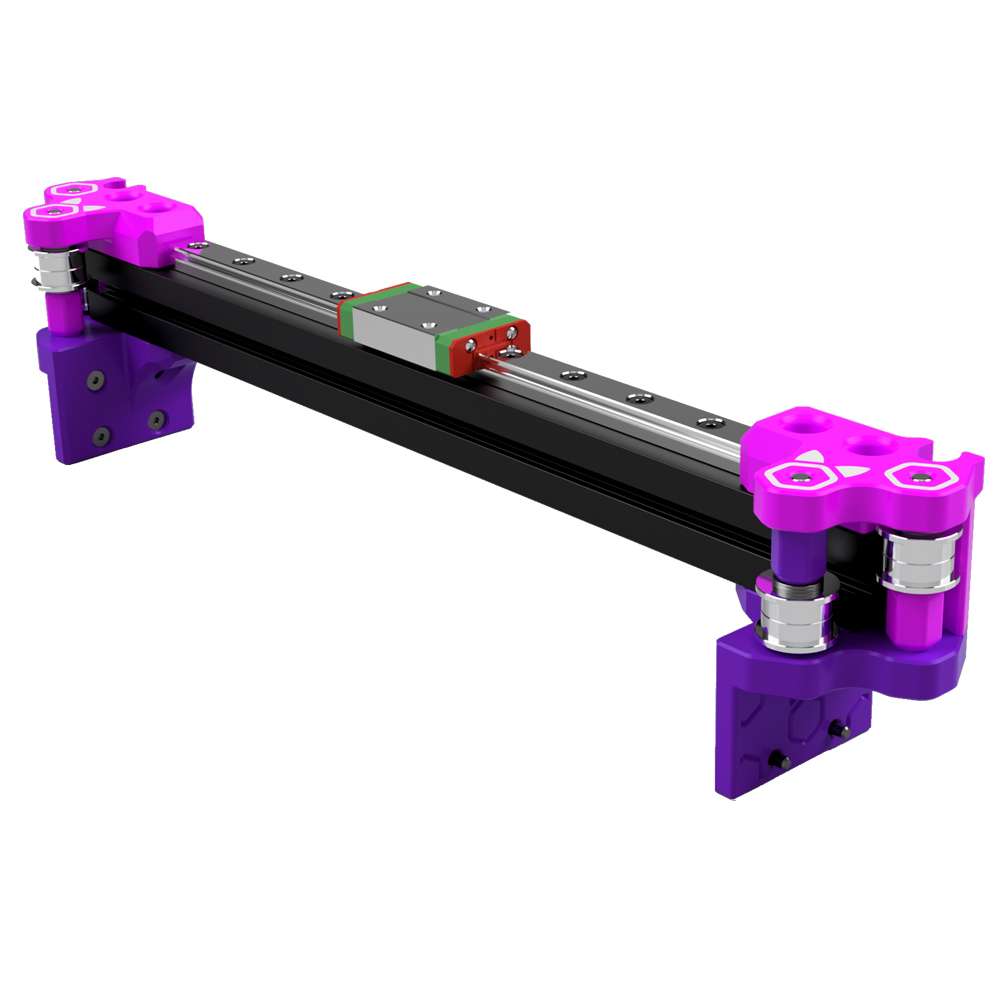

Live Idler XY joints + Tension Idlers

What’s in the kit:
This hardware kit contains all the fasteners, pins, bearings, and shims required to complete the Live Idler XY Joints, Idler, and Tensioner assemblies per the official Tulip 2.1 BOM on Github here.

Qty 9 – M2x6 FHCS
Qty 5 – M2x10 Self Tapping screws
Qty 3 – M3x6 BHCS
Qty 7 – M3x8 BHCS
Qty 9 – M3x10 BHCS
Qty 7 – M3x12 BHCS
Qty 5 – M3x25 BHCS
Qty 7 – M3x30 BHCS
Qty 3 – M3x35 BHCS
Qty 11 – M3 Hex Nut
Qty 9 – M3 Heat Set Insert
Qty 37 – M3x0.5mm Shim Washer
Qty 2 – Pin M3x18mm
Qty 8 – Pin M3x30mm
Qty 2 – 625 2RS Bearing
Qty 24 – F623 2RS Bearing
Qty 2 – 16 Tooth Push Fit Idler
Qty 2 – Premium Pulley 20T 6mm Wide
